TFOCA I Plug Part Number Description



Part Number





Description

TFPA-ST1M

Plug to ST 50um 2 Fiber 1 Meter

TFPA-ST10M

Plug to ST 50um 2 Fiber 10 Meter

TFPA-ST50M

Plug to ST 50um 2 Fiber 50 Meter

TFPA-SC1M

Plug to SC 50um 2 Fiber 1 Meter

TFPA-SC10M

Plug to SC 50um 2 Fiber 10 Meter

TFPA-SC50M

Plug to SC 50um 2 Fiber 50 Meter

TFPPA-1M

Plug to Plug 50um 2 Fiber 1 Meter

TFPPA-10M

Plug to Plug 50um 2 Fiber 10 Meter

TFPPA-50M

Plug to Plug 50um 2 Fiber 50 Meter

TFPPA-100F

Plug to Plug 50um 2 Fiber 100 FT

TFPPA-300F

Plug to Plug 50um 2 Fiber 300 FT

TFPPA-500F

Plug to Plug 50um 2 Fiber 500 FT

TFPPA-1000F

Plug to Plug 50um 2 Fiber 1000 FT

TFPPA-1K

Plug to Plug 50um 2 Fiber 1 Kilometer

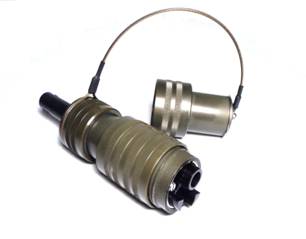

TFOCA Plug

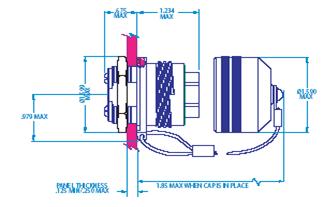

                                               TFOCA Receptacle

The TFOCA connector is a hermaphroditic design utilized for tactical deployable communications systems.  This genderless characteristic allows for concatenations of cable assemblies without regard for connector interface compatibility.

The ruggedized connector and housing will withstand the repeated handling and mating cycles typically required for rapid fiber optic cable deployment and retrieval in a tactical environment.

Features:

  • Hermaphroditic design ideal for deployable conditions
  • Replacement for US Army & US Marine TFOCA (AT&T)
  • Multimode
  • Field maintainable & Repairable
  • Biconic Termini

 Benefits:

  • The TFOCA has a unique design and an environmentally protected construction providing protection from high compressive and tensile loads. In addition, seals at every interface ensuring outstanding resistance to moisture penetration. The cable termination is designed to firmly anchor the cable KevlarŪ strength members to the connector housing without special tooling. The TFOCA connectors can be terminated and repaired in the field using existing US Army equipment Termination Kit.

Specifications:

Description

Measurement/Detail

Number of Channels

2 Channels

Optical Loss (Typical) (MM)

0.6 dB

Field Maintainable

Yes. Only requires common tools (screwdriver). No special tools required

Fiber Type

50/125 Radiation hard fiber available (phosphorus free)

Insertion Loss

50/125 Multimode fiber -0.6db typical

Operating Temperature

-10oC to +75oC

Mud

Per MIL-C-83526 /12 and /13

Shock

EIA/TIA-455-14, Condition A

Vibration

MIL-STD-1344, Method 2005.1

Cable Retention

400 lbs minimum per EIA/TIA-455-6 (applies to plug)

Twist

1000 cycles per EIA/TIA-455-36

Cable Seal Flexing

100 cycles per MIL-STD-1344, Method 2017, Procedure I

Mating Durability

2000 cycles per EIA/TIA-455-21

Water Pressure

Per MIL-C-83526 /12 /13 Requirements

Ice Crush/Freezing Water Immersion

Per MIL-C-83526 /12 /13 Requirements

Impact

Per EIA/TIA-455-2

Crush Resistance

450 lbs minimum per EIA/TIA-455-26

Flammability

MIL-STD-1344, Method 1012

















TFOCA I Jamnut Receptacle Part Number Description



Part Number





Description

TFJRA-ST1M

Receptacle to ST 50um 1 Meter

TFJRA-ST3M

Receptacle to ST 50um 3 Meter

TFJRA-ST5M

Receptacle to ST 50um 5 Meter

TFJRA-ST10M

Receptacle to ST 50um 10 Meter

TFJRA-SC1M

Receptacle to SC 50um 1 Meter

TFJRA-SC1M

Receptacle to SC 50um 3 Meter

TFJRA-SC5M

Receptacle to SC 50um 5 Meter

TFJRA-SC10M

Receptacle to SC 50um 10 Meter
